Датчик головы Renishaw MH8 (A-1332-0002)
288 086 ₽
*Спец цены для госкомпаний
A manually indexable probe head with repeatable indexing, eliminating the need to requalify the stylus tip position after orientation. The MH8 can be used with the TP6 probe directly or with the TP20 probe with up to 50 mm extension.
Описание

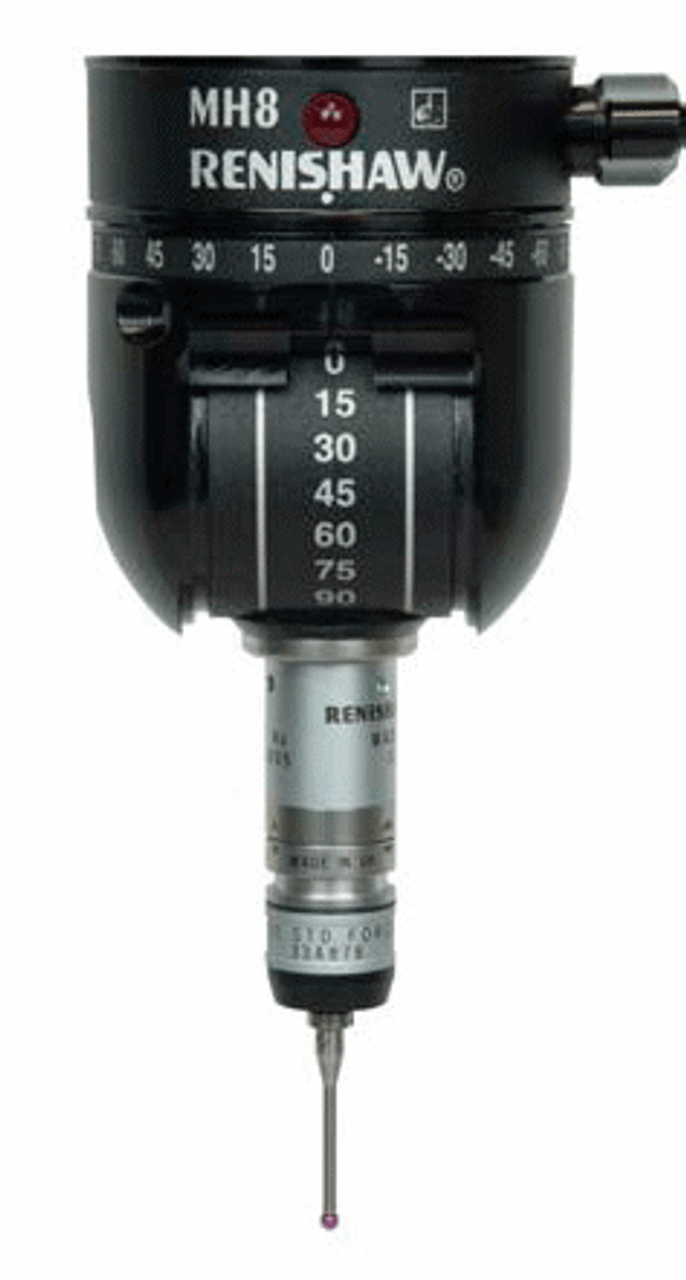

Renishaw MH8 Probe Head
A manually indexable probe head with repeatable indexing, eliminating the need to requalify the stylus tip position after orientation. The MH8 can be used with the TP6 probe directly or with the TP20 probe with up to 50 mm extension. An easy upgrade, as there is no need for special software, cabling, or electronics.
| 2σ positional repeatability | 1.5 Μm |
| Probe status indication | 1 LED |
| Cable connection | 5 pin DIN type connector |
| A-axis indexing | 0° to 90° in 15° steps = 7 positions |
| B-axis indexing | ±180° in 15° steps = 24 positions |
| Total number of positions | 168 |
| Maximum support capability | TP6 mounted directly TP20 with PEL1 50 mm extension |
| Probe mounting | M8 bush |
| Mounting options | Shank to suit your CMM |
Part Number: A-1332-0002
