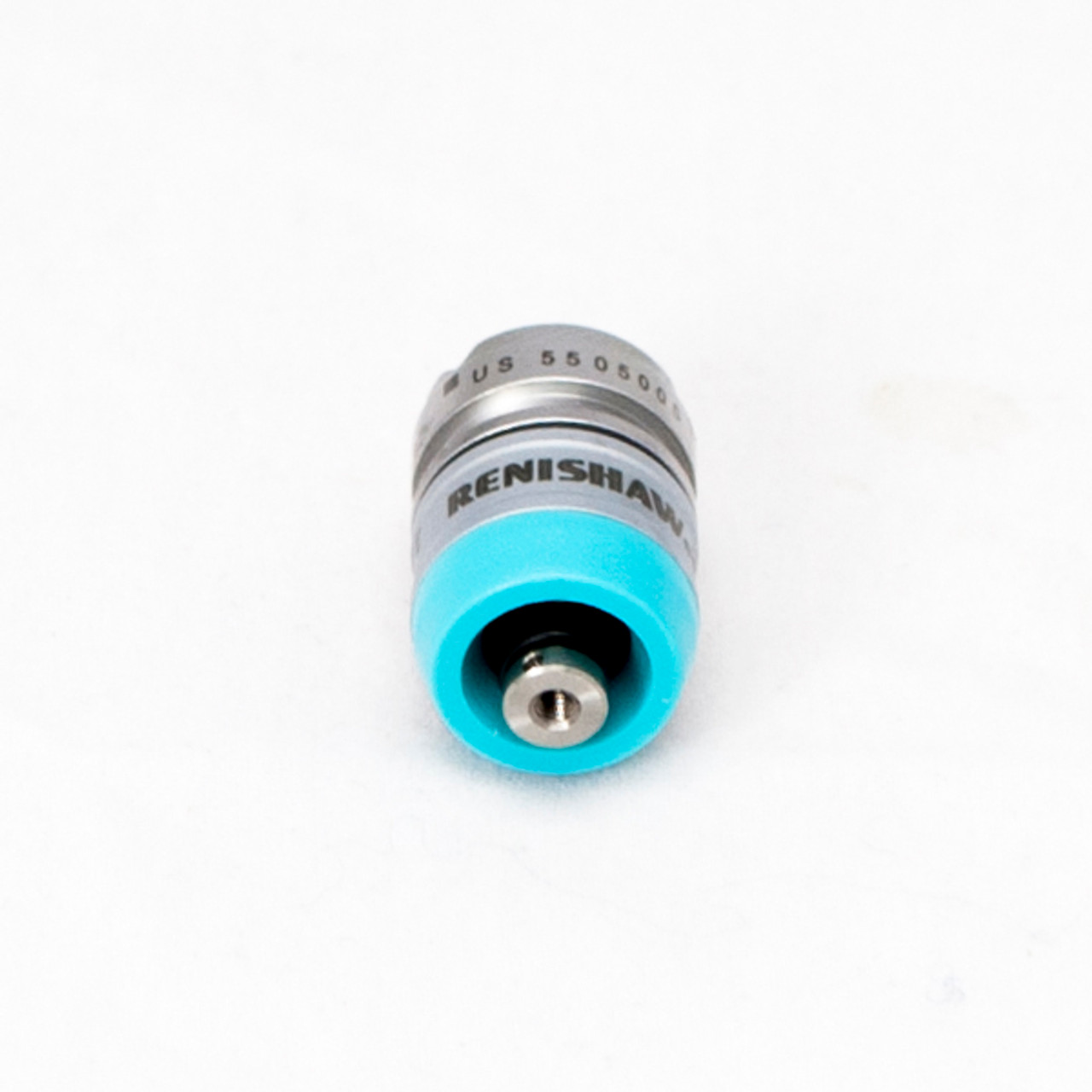

Модуль малых усилий Renishaw TP20 A-1371-0392
82 454 ₽
*Спец цены для госкомпаний
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification
Описание
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification of the stylus tips. It affords significant time savings in inspection routines.
A range of seven, application specific, probe modules are available and are identified by colored caps. The specifications of the low force probe module are as follows.
| Application | Trigger forces | Stylus lengths |
|---|---|---|
| Low trigger forces applications – e.g. rubber seals | XY: 0.055 N Z: 0.65 N Stylus: 10 mm |
10 mm to 30 mm |
This module has a lower trigger force for use on components where a low probing force is needed.
Renishaw Part number: A-1371-0392
