Стандартный силовой модуль Renishaw EM2 (удлинитель 75 мм) A-1371-0431
103 085 ₽
*Спец цены для госкомпаний
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification
Описание
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification of the stylus tips. It affords significant time savings in inspection routines.
A range of seven, application specific, probe modules are available and are identified by colored caps. The specifications of the EM2 standard 75 mm extension are as follows.
| Application | Trigger forces | Stylus lengths |
|---|---|---|
| Majority of applications requiring a 75 mm extension | XY: 0.08 N Z: 0.75 N Stylus: 10 mm |
10 mm to 50 mm GF |

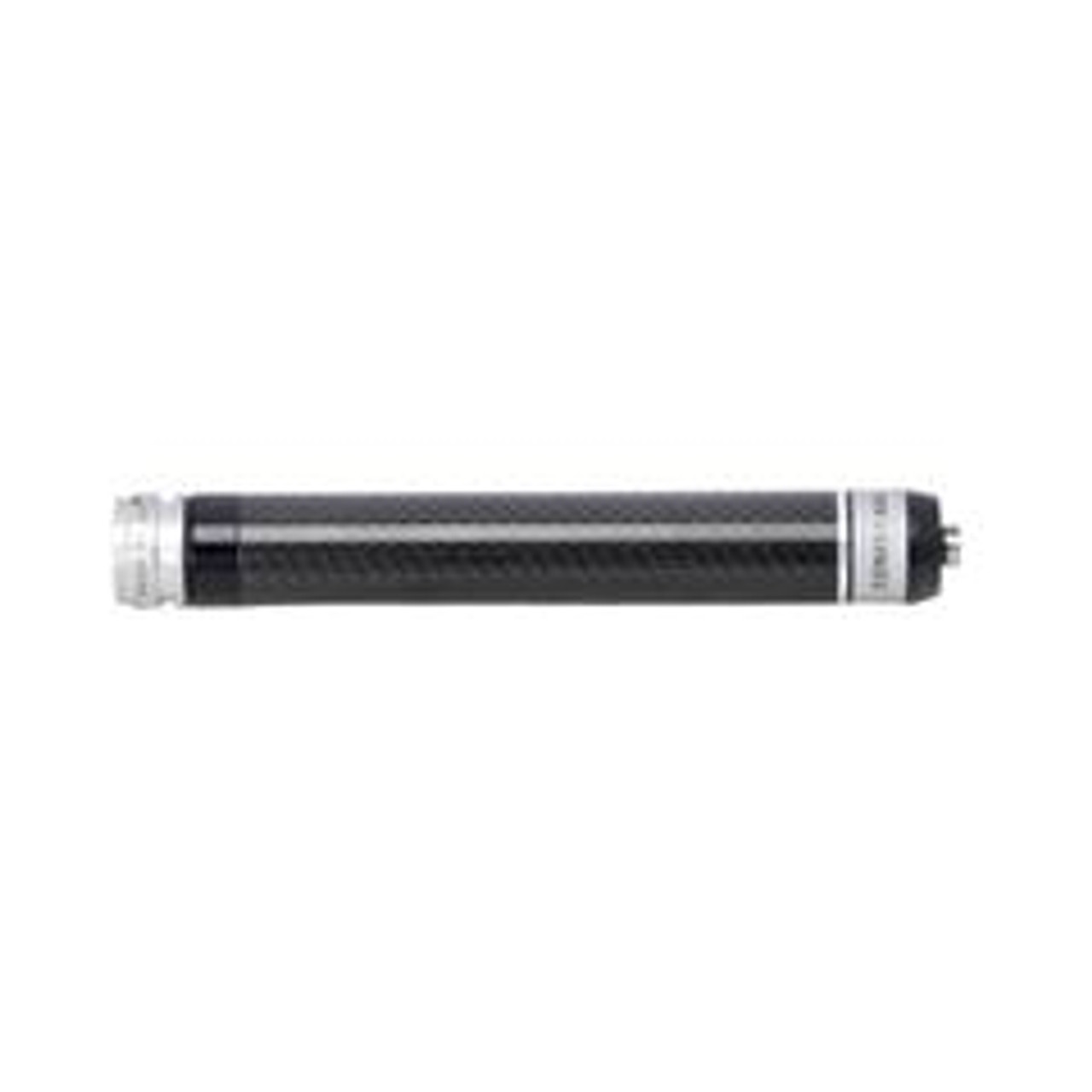

This module is based on the standard force module with an integral 75 mm carbon fiber extension piece.
Renishaw Part number: A-1371-0431
