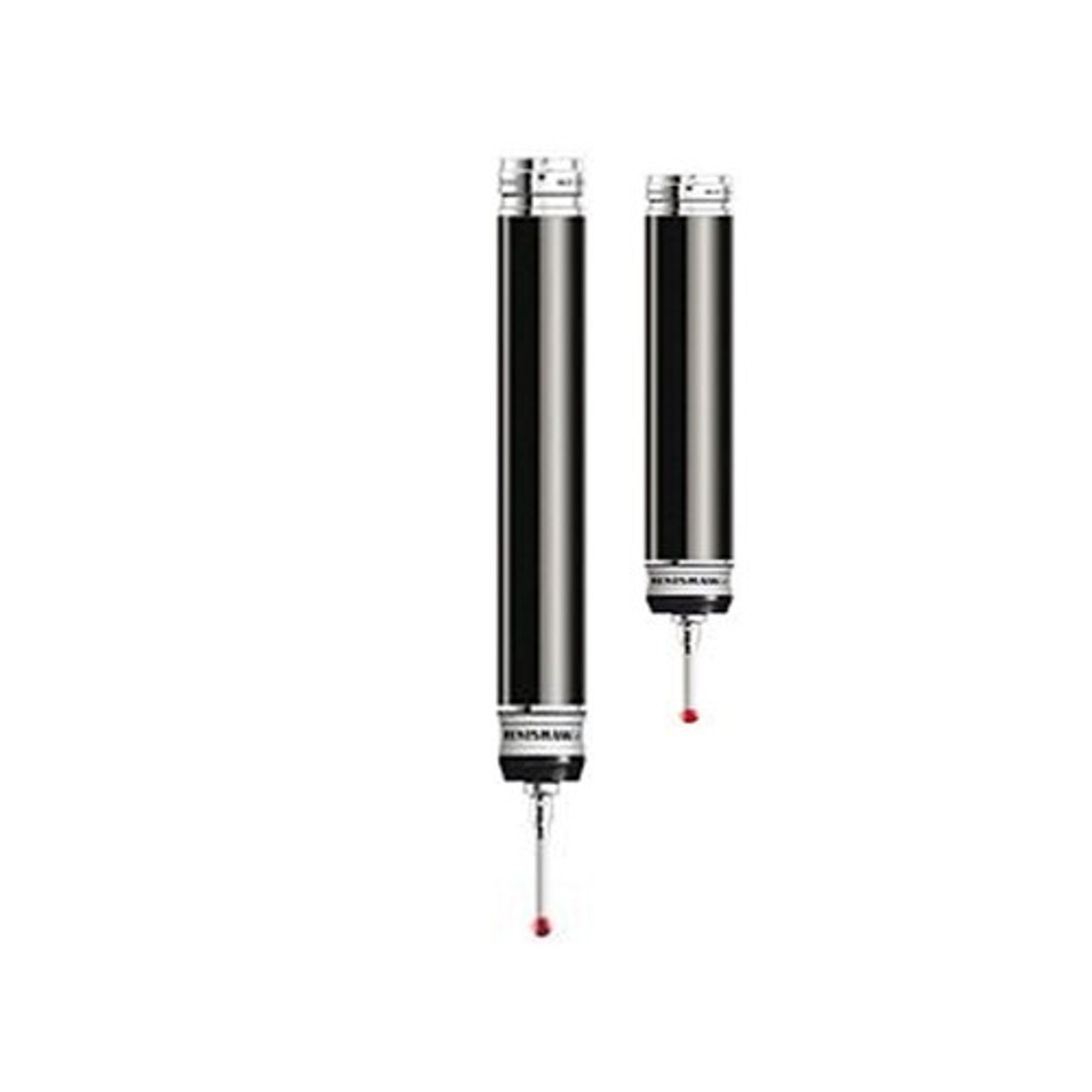

Комплект модулей расширения Renishaw EM1/EM2 A-1371-0432
183 254 ₽
*Спец цены для госкомпаний
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification
Описание
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification of the stylus tips. It affords significant time savings in inspection routines.
A range of seven, application specific, probe modules are available and are identified by colored caps. The specifications of the EM1 and EM2 extensions are as follows.
| Application | Trigger forces | Stylus lengths | |
|---|---|---|---|
| EM1 | Majority of applications requiring a 50 mm extension | XY: 0.08 N Z: 0.75 N Stylus: 10 mm |
10 mm to 50 mm GF |
| EM2 | Majority of applications requiring a 75 mm extension | XY: 0.08 N Z: 0.75 N Stylus: 10 mm |
10 mm to 50 mm GF |
Includes:
- TP20 EM1 standard module assembly
- TP20 EM2 standard module assembly
- Test certificate
- EM1/EM2 user’s information
Renishaw Part number: A-1371-0432
