Renishaw TS34 Датчик, комплект щупов и держателей (задний выход) A-2197-2100

286 272

*Спец цены для госкомпаний

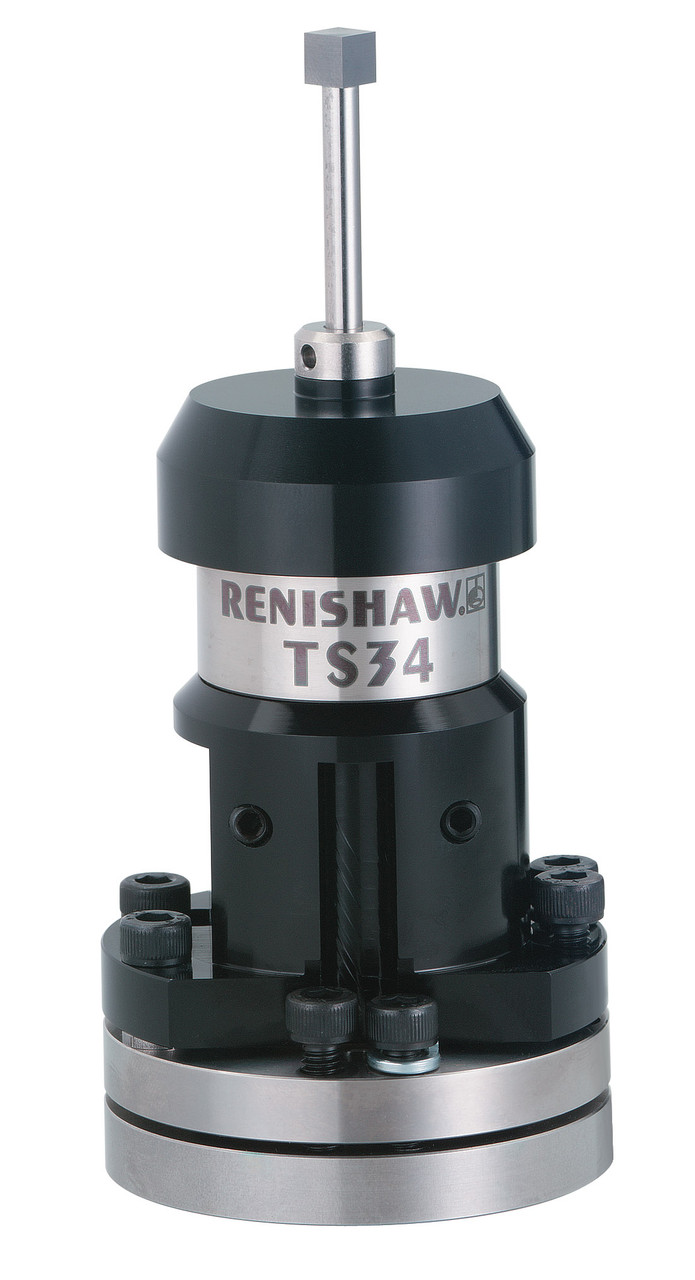

TS34 is a hard-wired tool setter for vertical and horizontal machining centers that enables users to set length and diameter of rotating tools and perform broken tool detection.

Описание

TS34 (Rear Exit)

TS34 is a hard-wired tool setter for vertical and horizontal machining centers that enables users to set length and diameter of rotating tools and perform broken tool detection.

Sense directions ±X, ±Y, ±Z
Stylus overtravel X and Y: ±9°
Z: 4 mm (0.157 in)
Stylus trigger force X and Y: 65 gf – 142 gf
Z: 550 gf
Unidirectional repeatability 1.0 Μm (0.00004 in)


Renishaw Part number:
A-2197-2100

Related Products:

Renishaw TS34 Contact Tool Setting Probe (rear exit) – RBE

TS34 chip shield

Renishaw TS34 Probe, Stylus and Holder Kit (side exit)

Resources

TS34 Installation Guide

Download

TS34 Data Sheet

Download
