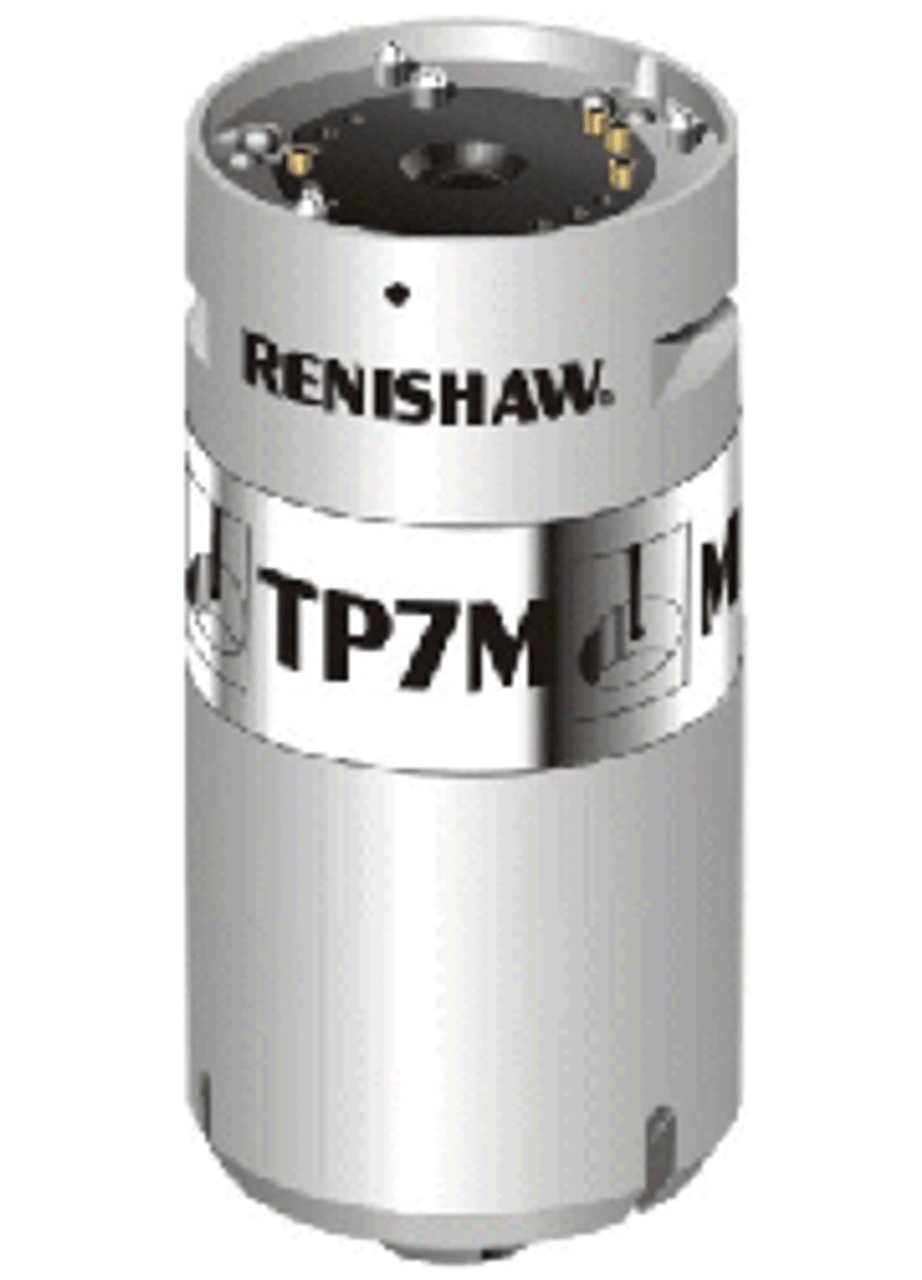

Renishaw TP7M Комплект сенсорных датчиков Renishaw TP7M A-1073-0121
456 960 ₽
*Спец цены для госкомпаний
The TP7M is designed to maintain a high level of accurate and reliable performance across a wide range of conditions. The TP7M must be used with either the PH10M probe head or a PH6M fixed head.
Описание
The TP7M is designed to maintain a high level of accurate and reliable performance across a wide range of conditions. The TP7M must be used with either the PH10M probe head or a PH6M fixed head.
| Sense directions | ±X, ±Y, ±Z |
| 2 σ unidirectional repeatabilty | High sensitivity: 0.25 Μm Mid sensitivity: 0.25 Μm |
| Pre-travel variation | High sensitivity: ±0.25 Μm Mid sensitivity:±0.25 Μm |
| Trigger force | XY plane: 2 g Z axis: 50 g |
| Overtravel force | XY plane: 50 g Z axis: 300 g |
| Stylus overtravel | XY plane: 16° +Z axis: 5 mm -Z axis: 5 mm |
| Max. extension on PH10M | 200 mm |
| Mounting options | Autojoint |
| Stylus thread size | M4 |
| Test stylus length | 50 mm |
| Suitable interface | PI7-3 only |
| Test conditions | 50 mm stylus @ 8 mm/s |
Renishaw Part number: A-1073-0121
