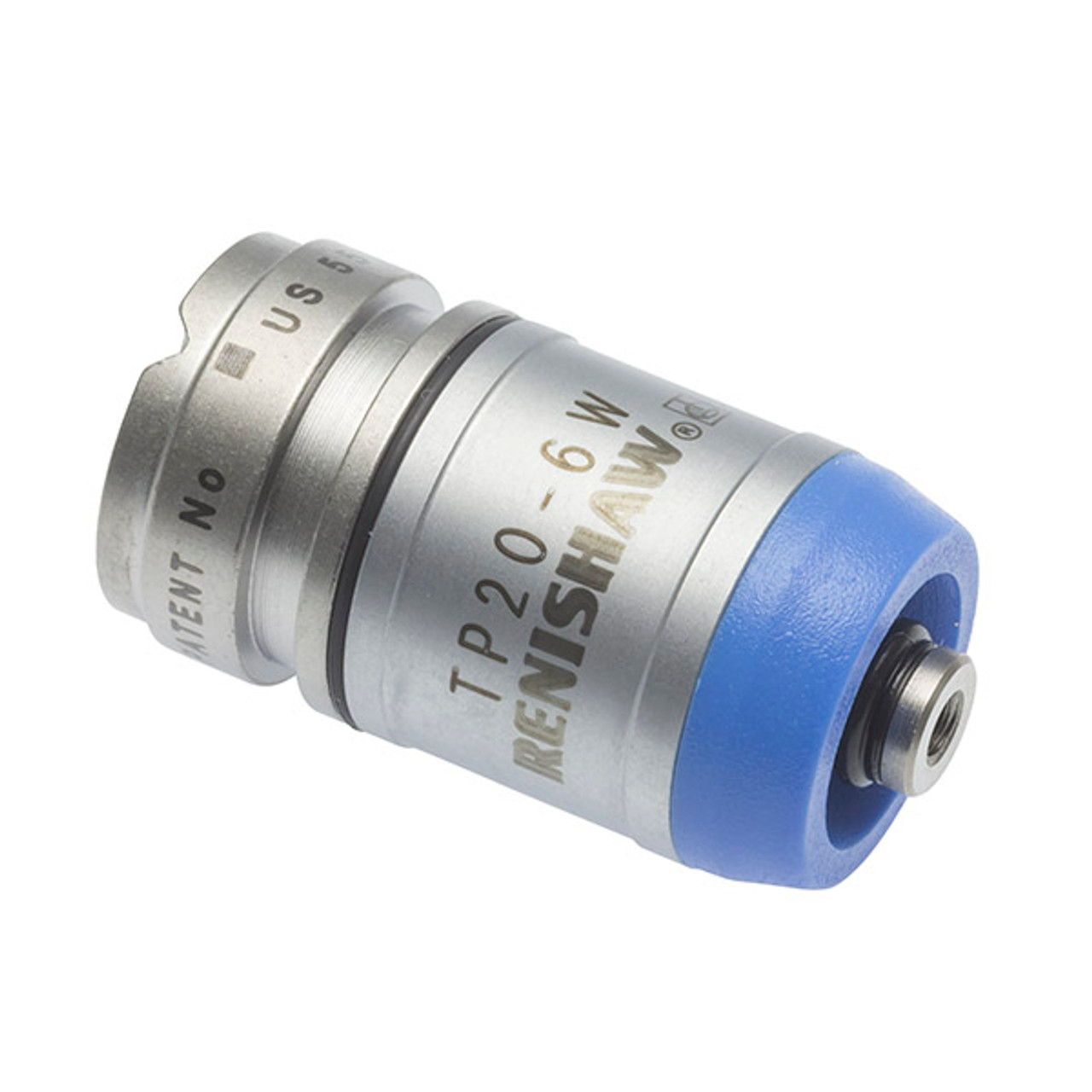

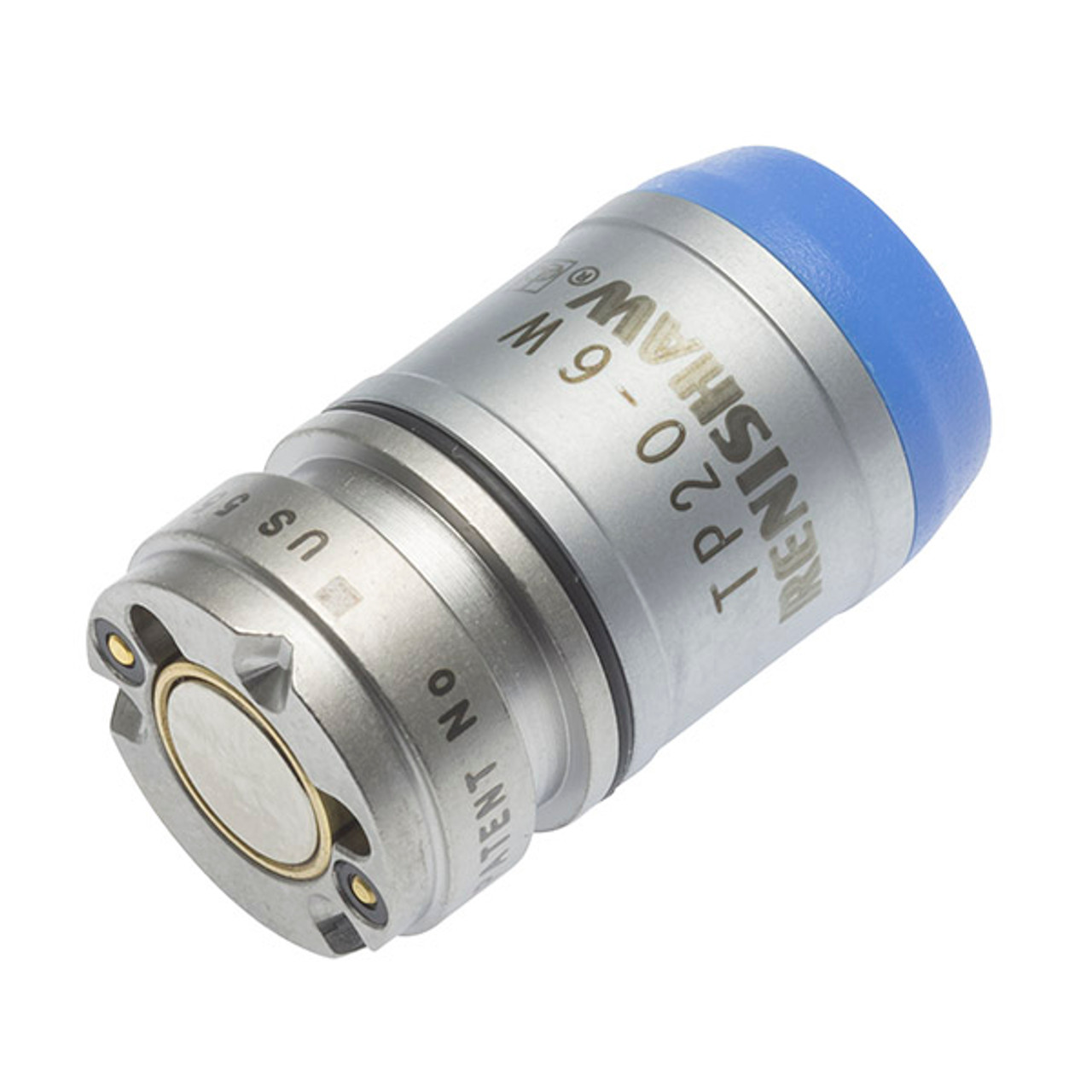

Renishaw TP20 6-полосный модуль датчика Renishaw TP20 6-way A-1371-0419
109 939 ₽
*Спец цены для госкомпаний
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification
Описание
The TP20 is a 5-way or 6-way kinematic touch-trigger probe. Its two piece design comprises a probe body and detachable stylus module(s) which gives the ability to change stylus configurations either manually or automatically without re-qualification of the stylus tips. It affords significant time savings in inspection routines.
A range of seven, application specific, probe modules are available and are identified by colored caps. The specifications of the 6-way probe module are as follows.
| Application | Trigger forces | Stylus lengths |
|---|---|---|
| Measurement in the –Z direction – e.g. undercuts | XY: 0.14 N Z: 1.6 N Stylus: 10 mm |
10 mm to 50 mm |
Renishaw Part number: A-1371-0419
