Датчик Renishaw TP1SM Touch A-1041-7541
282 240 ₽
*Спец цены для госкомпаний
Прочный и надежный датчик, который особенно подходит для ручных КИМ.
Описание
A reliable probe which is especially suited for manual CMMs. It is available in two versions with differing plug socket orientations:
TP1S: cable connects vertically
TP1SM: cable connects horizontally
The TP1S is a robust shank-mounted probe offering generous overtravel, ideally suited to manual CMMs. TP2 5-way – A compact probe allowing component penetration, ideally suited to CNC/DCC machines. TP6 – Complementing the TP2 series, but carrying longer and heavier styli, this probe is suited to general purpose applications. TP6A – This probe has all the functions of the TP6 probe and in addition the patented Renishaw autojoint that permits fast probe exchange without the need to requalify.
| Sense directions | ±X, ±Y, +Z |
| 2σ unidirectional repeatability | 0.5 µm |
| Pre-travel variation | ±2.0µm |
| Stylus force range | 10 g to 50 g |

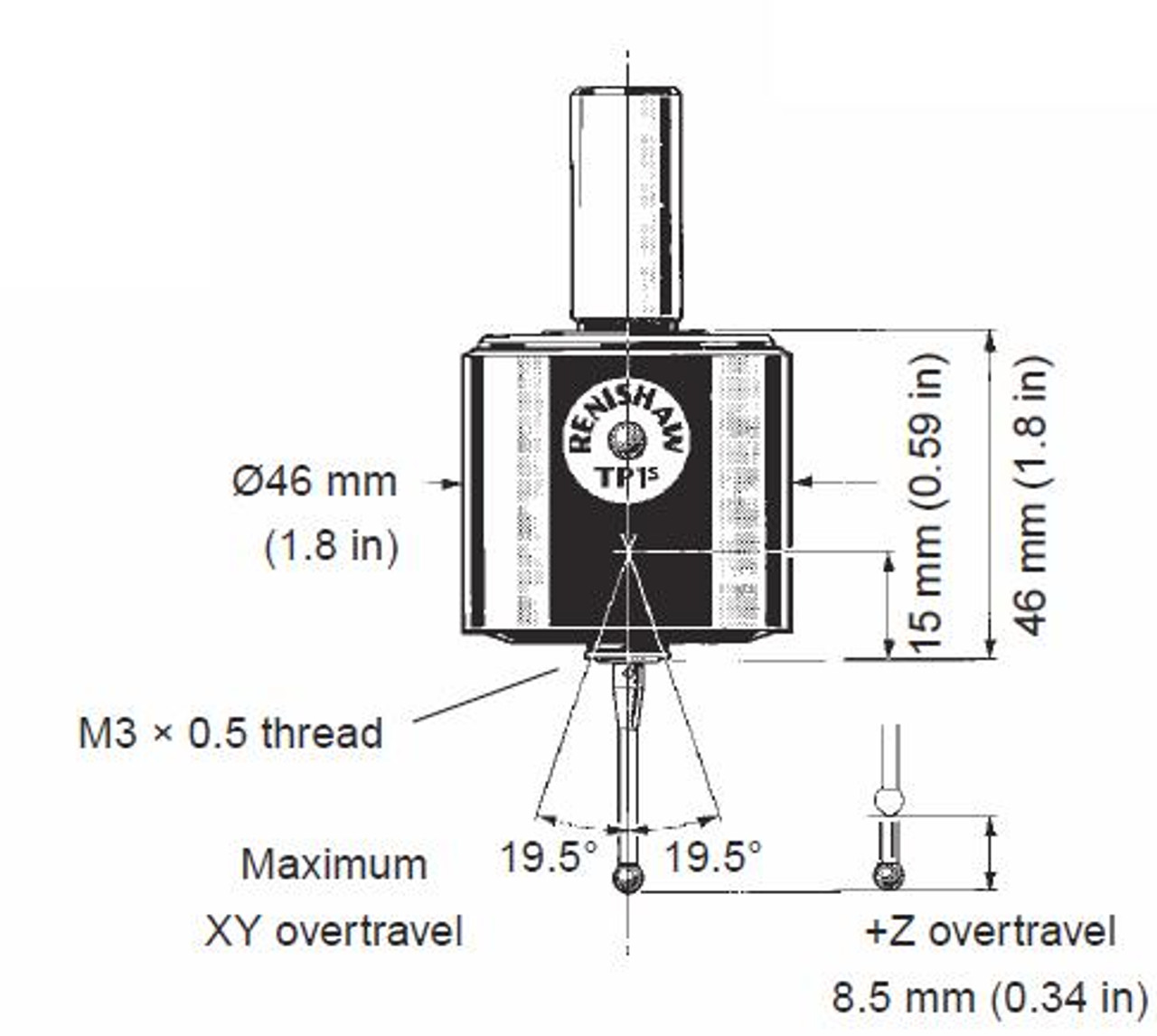

| Stylus overtravel | XY plane: ±19.5° +Z axis: 8.5 mm @ 15 g; 5.0 mm @ 50 g |
| Suitable interfaces | PI4-2, PI7-3, or PI200-3 |
| Stylus thread size | M3 |
| Mounting option | Shank to suit your CMM |
| Test conditions | 31 mm stylus @ 8 mm/s with trigger force of 15 g |
Renishaw Part number: A-1041-7541
