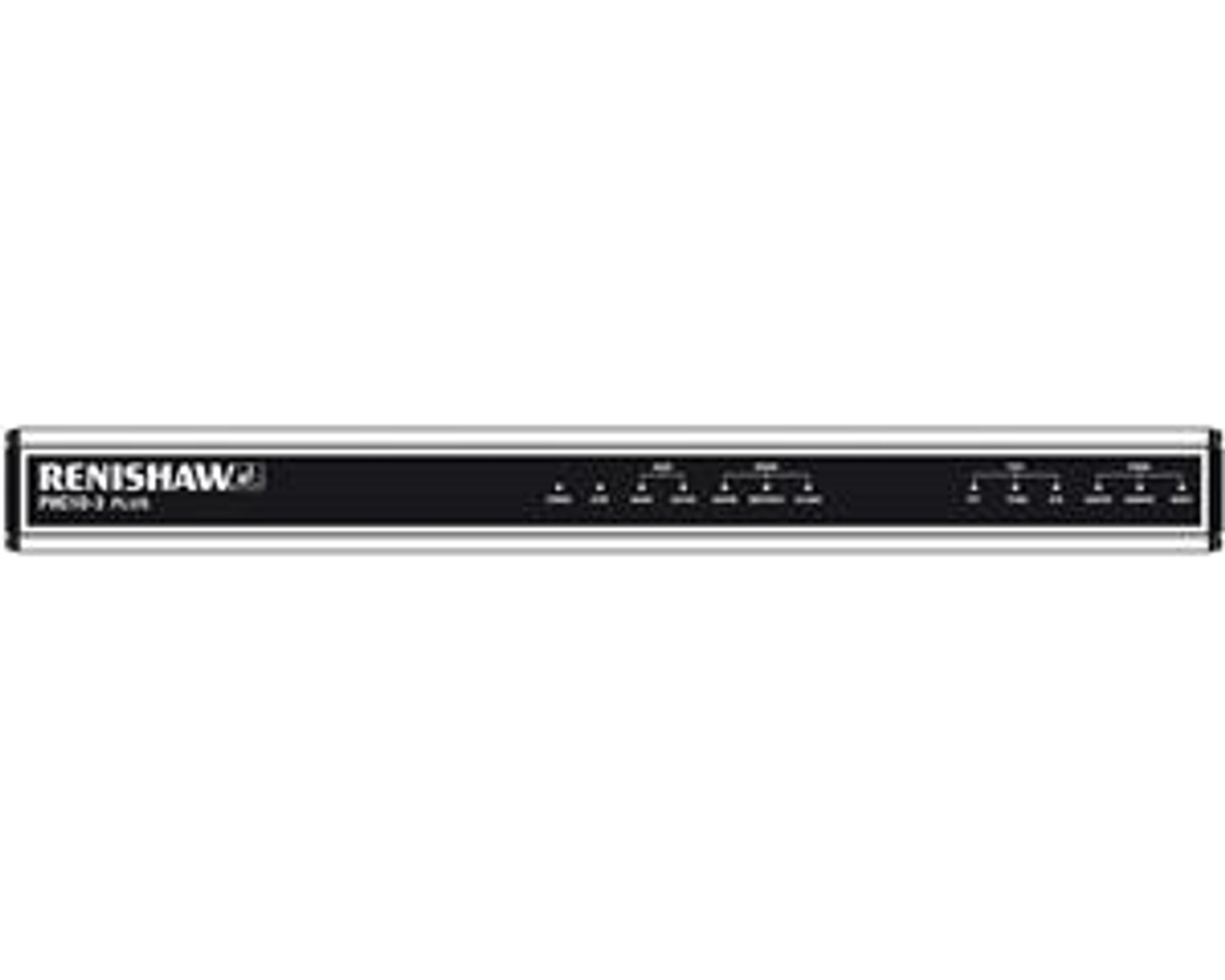

Контроллер Renishaw PHC10-3 PLUS (A-5863-0100) A-5863-0100
252 403 ₽
*Спец цены для госкомпаний
The PHC10-3 PLUS control recieves instructions and processes signals to rotate the angles of the PH10 PLUS series probe heads. The PHC10-3 PLUS is compatible with all PH10 PLUS heads. It has its own internal power supply.
Описание
The PHC10-3 PLUS control receives instructions and processes signals to rotate the angles of the PH10 PLUS series probe heads. The PHC10-3 PLUS is compatible with all PH10 PLUS heads. It has its own internal power supply.
| Data transmission | RS232 or USB |

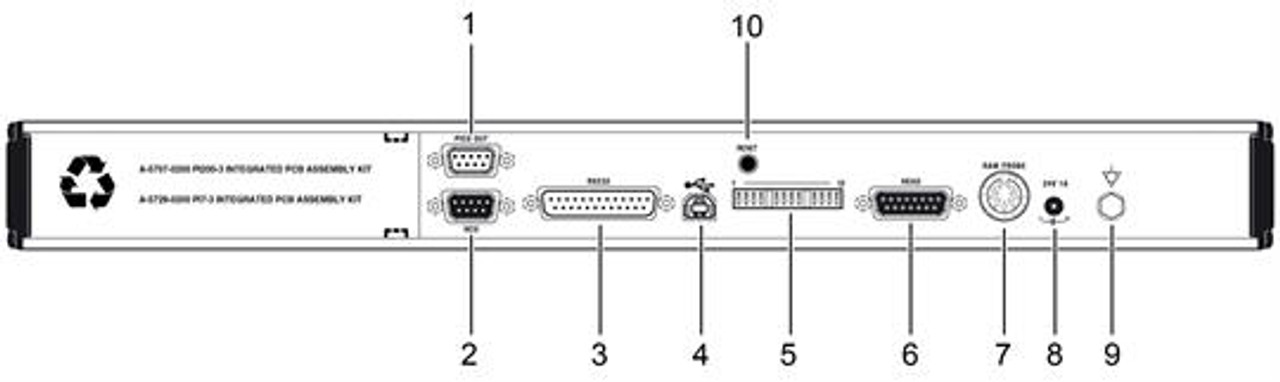

| Input connectors | 15 way ‘D’ Probe |
| Output connectors | 7 pin DIN or 9 pin D type |
| Maximum cable length | 50 m (164 ft) |
| Hand control | HCU1 (purchased separately) |

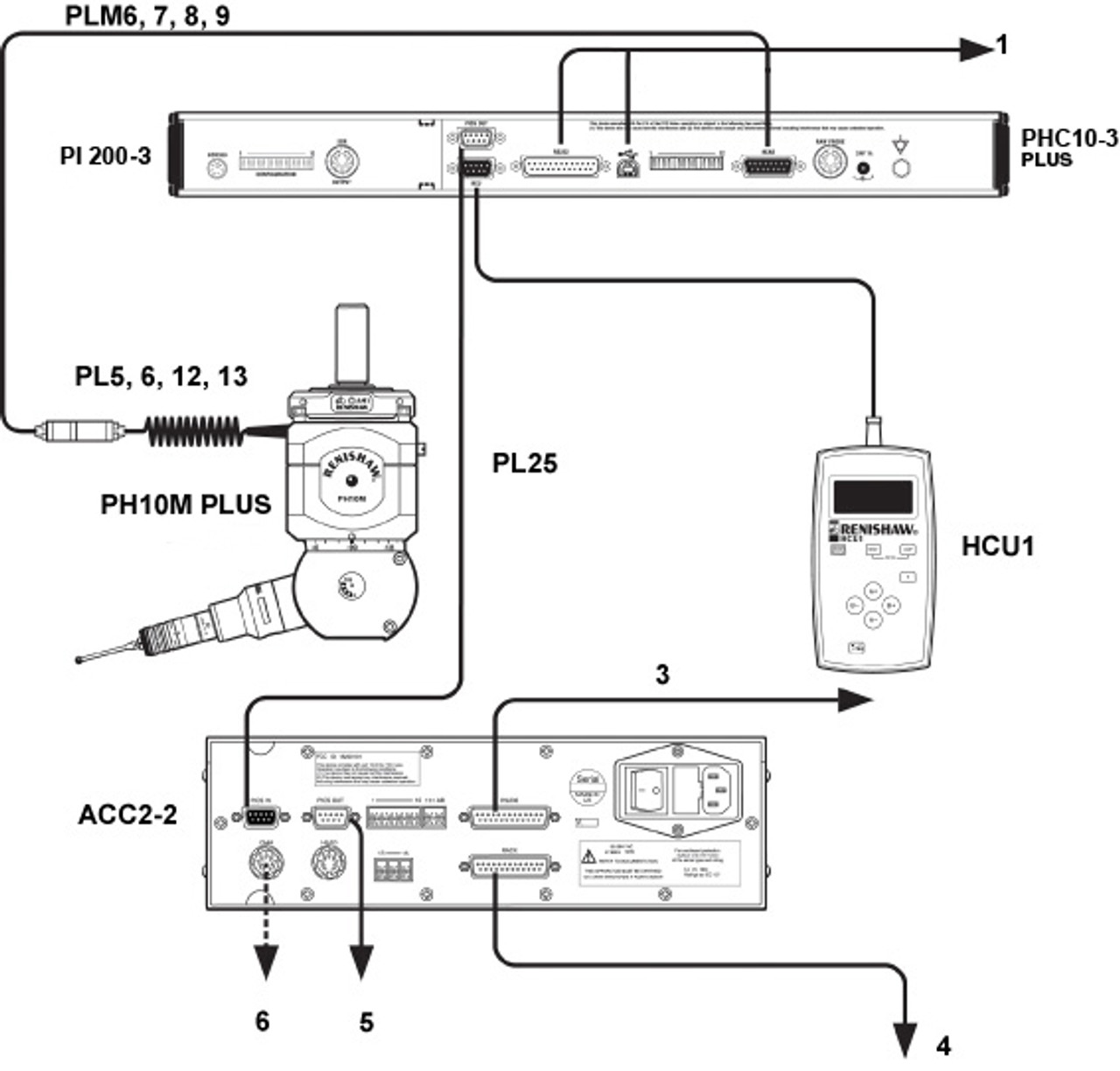

- Drives PH10 PLUS (PH10T PLUS, PH10M PLUS or PH10MQ PLUS) to position – sent either from the HCU1 or CMM
- Checks and reports position
- Flags up errors, e.g. failure to reach position, obstruction before or after locking etc.
The PHC10-3 PLUS does not process any of the probe sensor signals. These are railed clean through the heads axes and controller to the probe interface.
Renishaw part number: A-5863-0100
