Комплект для модернизации Renishaw OMP40-2 RI-4071-0001
161 885 ₽
*Спец цены для госкомпаний
Current users of MP7, MP8, MP9, or MP10 optical transmission probes may upgrade to OMP40-2. A complete working system (probe module plus transmission system) must be exchanged.
Описание
OMP40-2

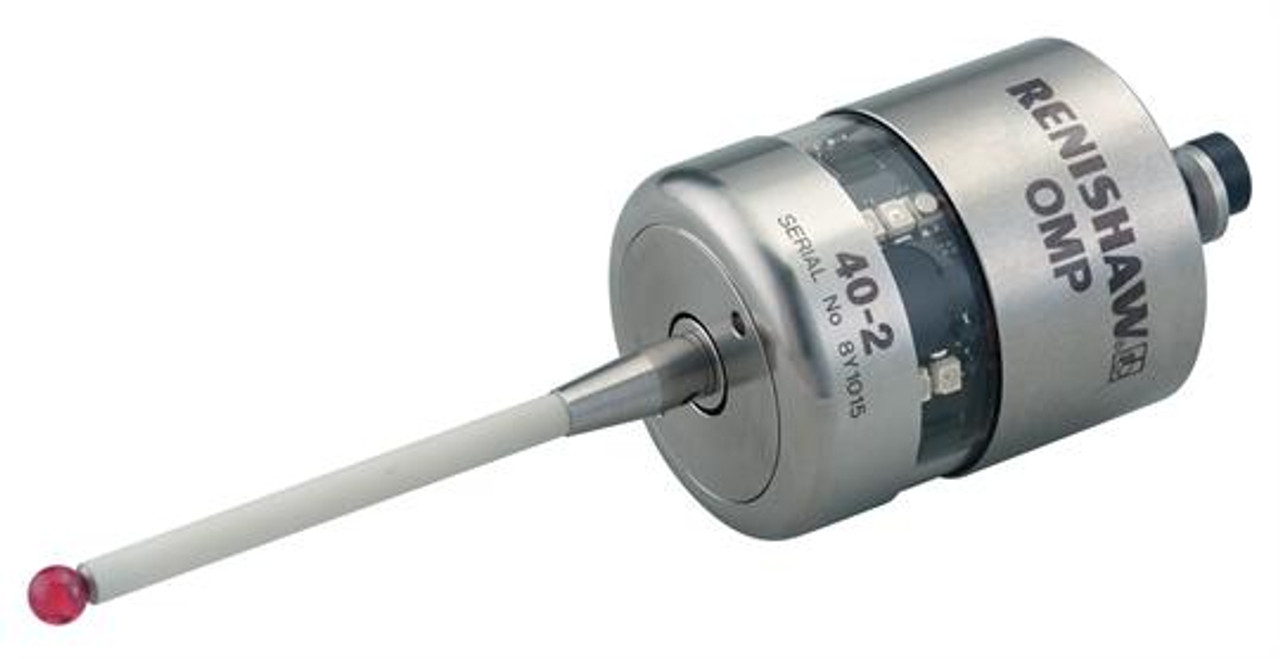

The OMP40-2 is an ultra compact optical transmission part probing system. Measuring just 40 mm diameter and 50 mm in length, the OMP40-2 is suitable for all machining and mill-turn centers. Utilizing a revised state-of-the-art modulated optical transmission method, the system offers the highest level of resistance to light interference when used with the OMI-2/OMI-2T. The OMP40-2 probe is also backwards compatible with existing OMM/MI12 and OMI receivers, enabling current MP7, MP8, MP9, and MP10 system users to benefit from its innovative features.
| Sense directions | ±X,±Y,±Z |
| Stylus overtravel | X and Y: ±12.5° Z: 6 mm (0.23 in) |
| Stylus trigger force | X and Y: 50 gf – 90 gf Z: 585 gf |
| Unidirectional repeatability | 1.0 Μm (0.00004 in) |
OMP40-2 Upgrade Kit
Current users of MP7, MP8, MP9, or MP10 optical transmission probes may upgrade to OMP40-2. A complete working system (probe module plus transmission system) must be exchanged.
Includes:
- OMP40-2 probe system
Renishaw part number: RI-4071-0001
