Renishaw MH20 Датчик Головка (модуль малой силы) (A-4043-0000)
331 498 ₽
*Спец цены для госкомпаний
The MH20 is an ultra-compact manually adjustable probe head offering maximum flexibility in probe orientation. The full range of TP20 probe modules can be used via its integral probe mounting. The MH20 is incompatible with MCR20.
Описание

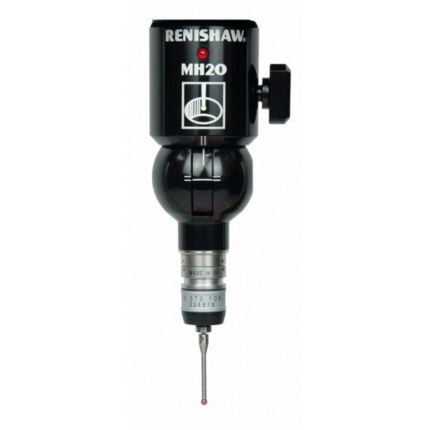

Renishaw MH20 Probe Head (low force module)
The MH20 is an ultra-compact manually adjustable probe head offering maximum flexibility in probe orientation. The full range of TP20 probe modules can be used via its integral probe mounting. The MH20 is incompatible with MCR20.
| Probe mounting | TP20 kinematic mount |
| Head mounting | MS/T range of shanks |
| Suitable interfaces | PI4-2, PI200-3 or PI7-3 |
| Number of probe sockets | 1 |
| Probe status indication | 1 LED |
| Cable connection | 5 pin DIN 180° socket |
| A-axis indexing | Non-indexing swivel ±93° |
| B-axis indexing | Non-indexing swivel ±300° |
| Maximum extension bar | EM2 extension module – 75 mm (2.95 in) |
Part Number: A-4043-0000
