Датчик Renishaw HPRA RPE Kit (6 in chuck) A-2176-0883
301 056 ₽
*Спец цены для госкомпаний
HPRA – это экономичная система точной настройки инструмента для токарных станков с ЧПУ.
Описание
High Precision Removable Arm (HPRA)

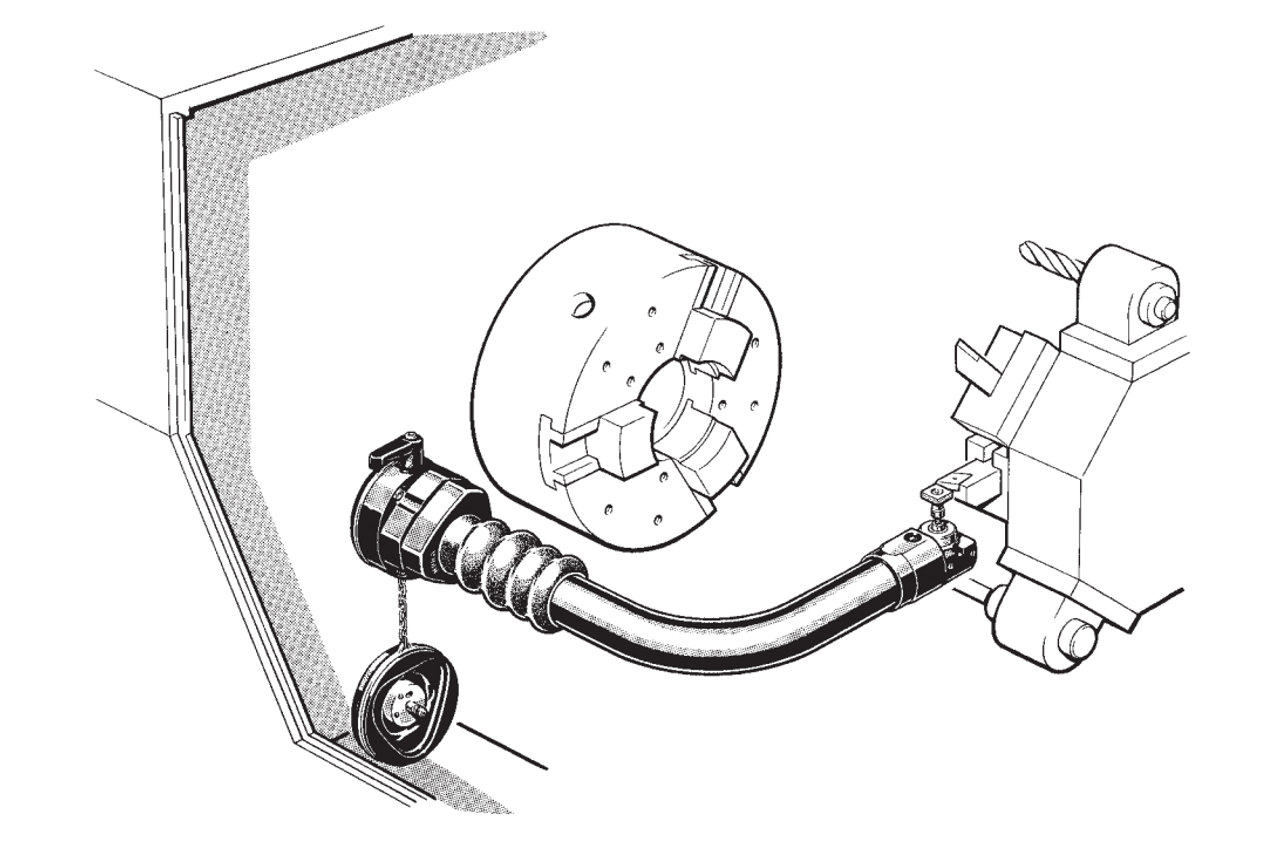

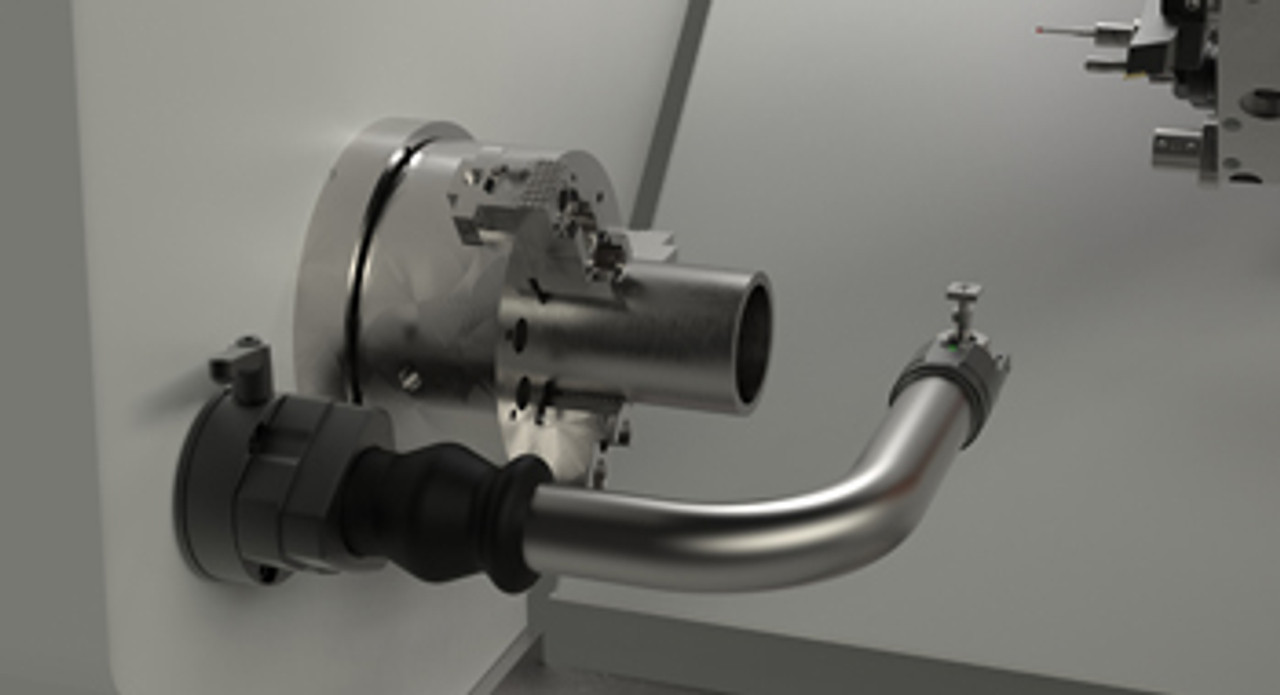

The HPRA is a “plug-in”, cost effective, precision tool setting system for use on CNC lathes. When needed, the arm is manually introduced to the machine envelope and held in place through the use of the machine resident HPRA base. The arm is locked in position through the duration of the tool setting cycle. After use, the arm is removed and stored on the HPRA storage stand.
| Unidirectional repeatability max 2σ value |
5 Μm (0.0002 in) for arms supporting 6 in to 15 in chucks 8 Μm (0.0003 in) for arms supporting 18 in to 24 in chucks |
| A-dimension | 250 |
| B-dimension | 211 |
HPRA with RP3 Kit (6 in chuck)
Includes:
- RP3 probe
- 90° probe holder
- TSi2 interface
- HPRA storage stand
Part number: A-2176-0883
* A stylus assembly and base (rear exit or side exit) are not included and must be ordered separately.
