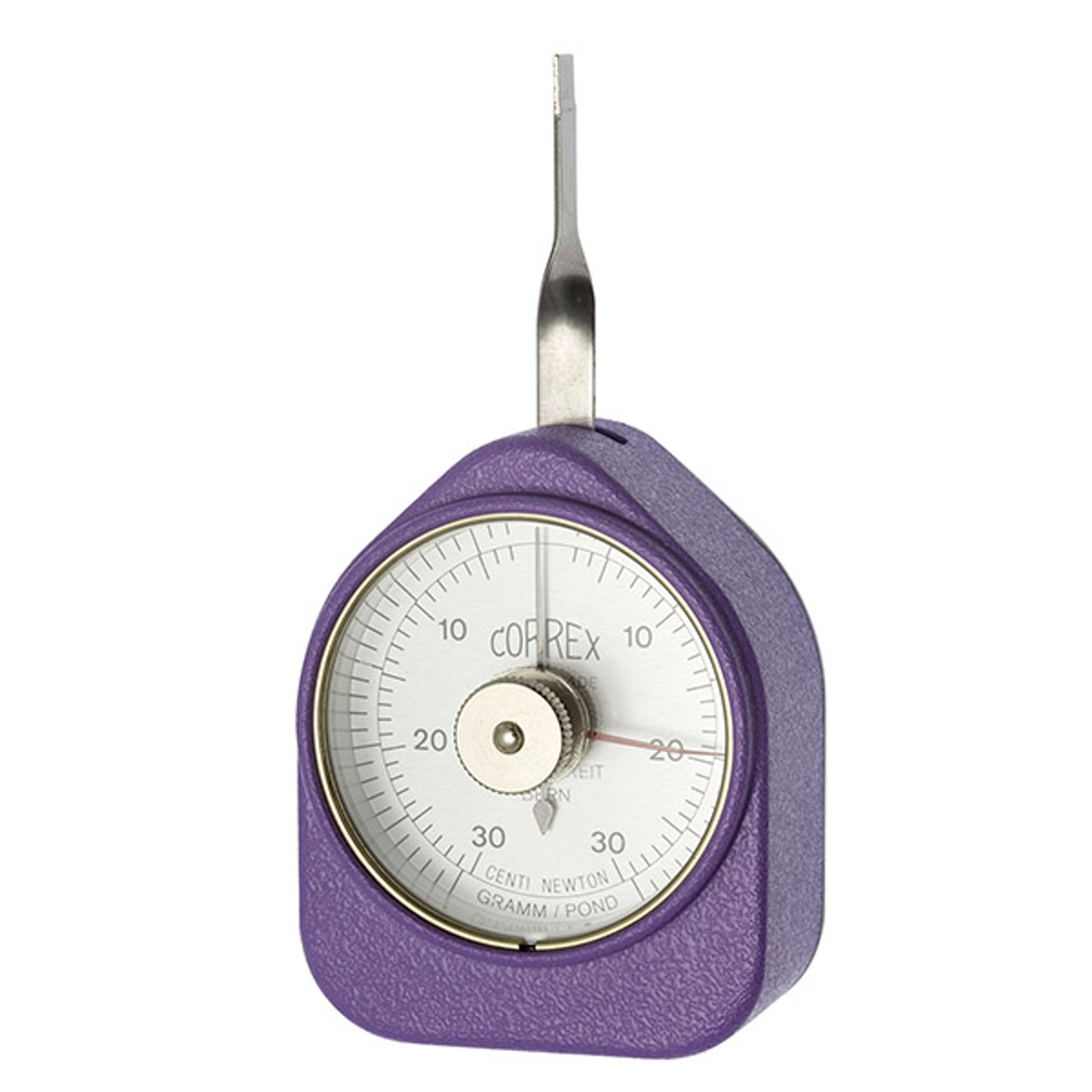

Манометр Renishaw Gram P-GA01-0001
30 845 ₽
*Спец цены для госкомпаний
The gram gage allows you to adjust, reset and check probe trigger force settings on all standard Renishaw CMM touch-trigger probes. Setting the optimum trigger force using the gram gage maximizes probe performance. It can be used to set trigger force
Описание
The gram gage allows you to adjust, reset and check probe trigger force settings on all standard Renishaw CMM touch-trigger probes. Setting the optimum trigger force using the gram gage maximizes probe performance. It can be used to set trigger force settings over a range of 3 to 30 grams.
| Overall length | 95 mm |
| Needle length | 41 mm |
| Depth | 27 mm |
| Width | 43 mm |
| Range | 4 to 35 gram range with 1 gram graduations |
| Probe | Stylus length (mm) |
Optimum trigger force (grams) * |
|---|---|---|
| TP1 | 31 | 15 |
| TP2-5W | 10 | 7 to 8 |
| TP2-6W | 10 | 7 to 8 |
| TP6 | 21 | 11 to 13 |
| TP6A | 21 | 11 to 13 |
* This is the optimum trigger force recommended by Renishaw. Higher trigger forces may be required for longer styli.
Renishaw Part number: P-GA01-0001
